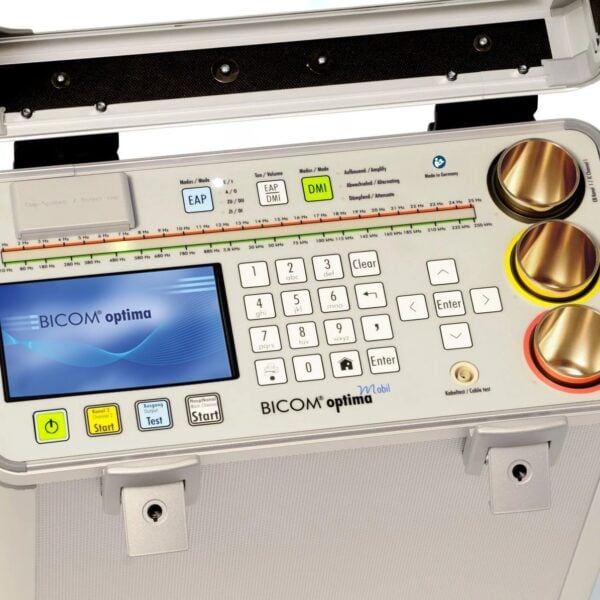

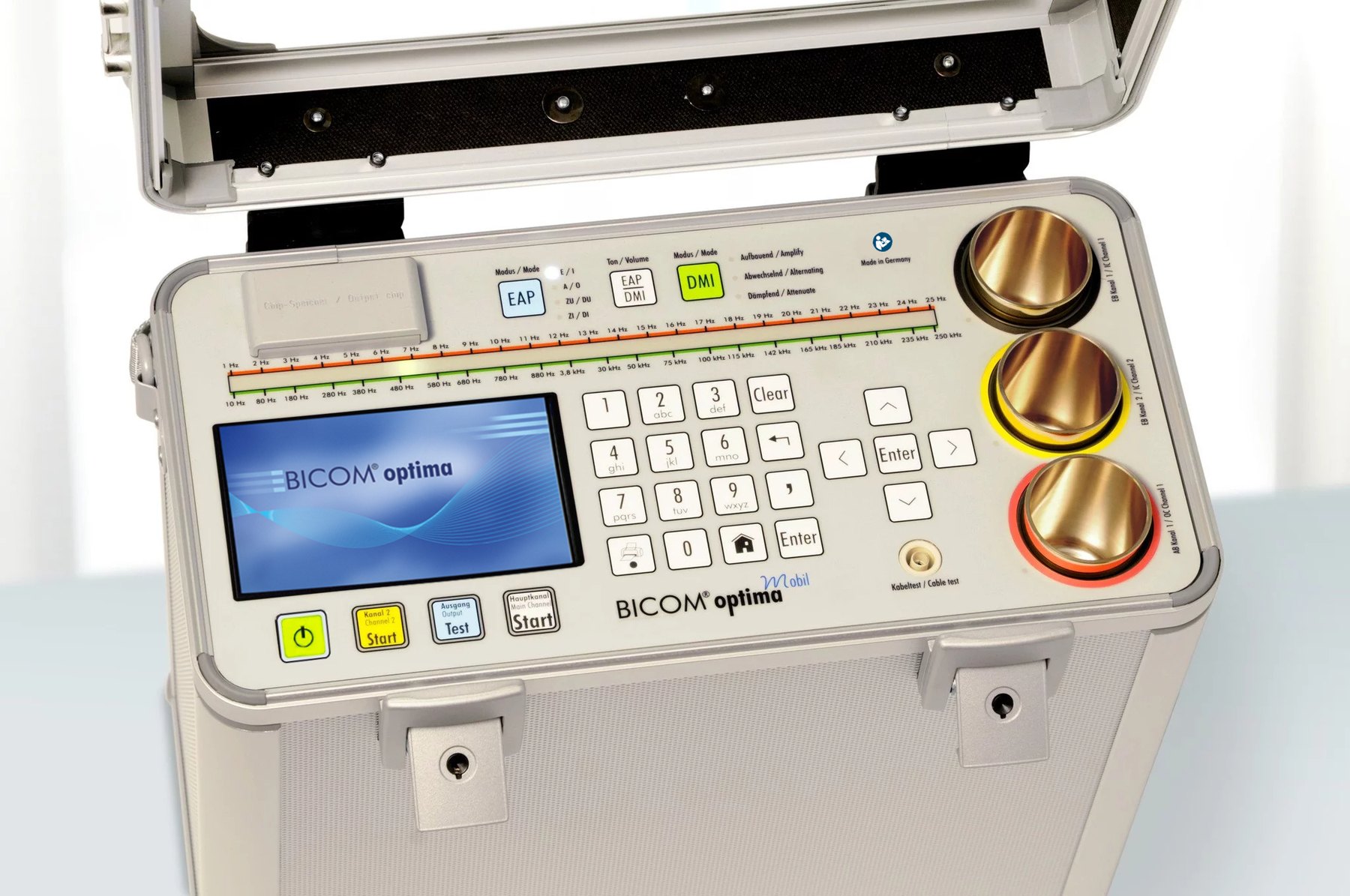

BICOM® optima mobil therapy device

What is included

With the EAP test part, and supplied with standard accessories:

• Accessory suitcase and trolley
• 1 BICOM® modulation mat optima, 64 x 20 cm
• 1 package of BICOM® chips, 100 pieces
• 4 glass insertions for cup applicators, 50 ml
• 3 black and 3 red safety cables, 2 m
• 1 therapy stylus
• 1 low pressure applicator, feathered
• 1 pair of cylindrical standard hand applicators
• 9 ampoules for the basic systematic
• 1 USB cable, 1 USB hub
• 1 charging device
• 1 foot switch
• 1 operation manual, 1 BICOM® optima program handbook

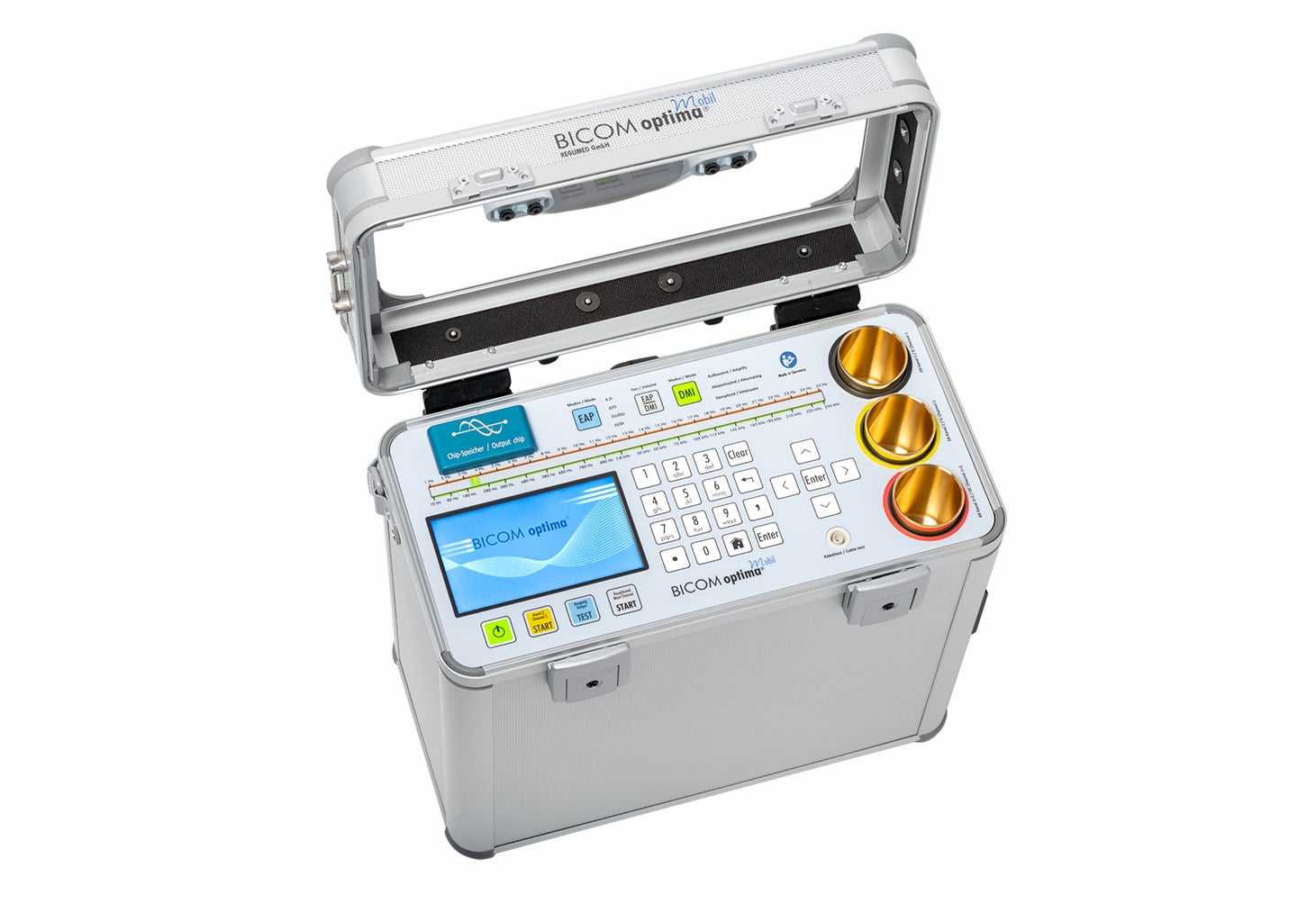

The suitcase and trolley are what set this apart from the desktop version. The electronics, modes, frequency ranges and test part are the same.

Therapy modes

Six selectable modes: A, H, Ai, Di, H + Di and Ai + A. Channel 1 separates the incoming information through the BICOM® H + D separator filter, with inversion available on Ai and Di, plus amplification, attenuation and bandpass modulation. Channel 2 always runs in mode A, leaving the signal unchanged, with therapy time and amplification adjustable.

Therapy rhythm is either permanent, or interval at three seconds on and one second off.

Frequency range

• Main bandpass range: 10 Hz to 250 kHz, a span of 1:25,000
• Low deep frequency range: 1 Hz to 25 Hz
• Channel 1 with “all frequencies” selected: 1 Hz to approximately 500 kHz, amplitude falling off at the top of the range
• Channel 2: below 1 Hz to approximately 800 kHz, again with falling amplitude at the top
• Bandpass: steep-flank high-order, breadth ±4% of the centre frequency

Bandpass settings

1. All frequencies, 1 Hz to 25 Hz
2. All frequencies, 10 Hz to 250 kHz
3. Frequency sweep, 10 Hz to 250 kHz and 1 Hz to 25 Hz
4. Narrow bandpass of the higher ranges, set by a centre frequency
5. Wobbling bandpass, set by a centre frequency, switchable on and off

Sweep speed runs 3 to 999 seconds in the 10 Hz to 250 kHz range, and 120 to 999 seconds in the 1 Hz to 25 Hz range. Amplification can be held constant, stepped up or down, or swept up or down.

Programs

• Stored programs called up by a 2 to 5 digit number
• Self-stored programs in the range 1000 to 1299
• Low deep programs from number 3000
• Program sequences, several programs combined and stored under a 5 digit number

Inputs, outputs and connections

• Input channel 1 and input channel 2: 2.2 kΩ input resistance, each galvanically decoupled through a buffer amplifier
• Output: 10 kΩ output resistance
• Safety plug sockets, input channel 1 marked black, outputs for channels 1 and 2 marked red
• Yellow ODU sockets for input channel 2
• ODU sockets for the modulation mat, PowerApplicator or memory device
• ODU sockets for charging and the foot switch, for the infrared transmitter, and for servicing
• DIN socket for the test equipment
• One USB-A socket for updates, one USB-B socket for the BICOMmultisoft® software, one blue MT socket

Integrated EAP test part

Measurement range 0 to 10 MΩ. On-screen prompts cover the pressure curve, time, timer, probe indicator and EAP volume, with test sound volume set in software and by a hardware slider. Test functions listed by Regumed are the conductance test, quadrant test, acupuncture point test, point therapy, medication test, dental material test, allergy and intolerance test, and current intensity and voltage test. Takes the honeycomb for medication testing and the spin tester.

Power and battery

• Gas-tight lead battery, 7.2 Ah, 12 V, maintenance free
• Battery operation of roughly 4.5 to 6 hours, depending on screen brightness and use
• Charging device primary: 110 to 240 V, 50 to 60 Hz, 250 mA, 45 to 75 VA
• Charging device secondary: 12 V, 2.5 A, 24 VA
• Fuses: charger T 200 mA primary and T 2.5 A secondary, device 1 x 5 A, battery box short circuit protection T 10 A
• Overvoltage category II

Operation and displays

Menu-driven, operated by a lit short-stroke foil keypad and two 5 inch resistive touch screens, with control LEDs. AVR processor in the CPU box and an XSCALE processor in the industrial computer. Built-in checks include a battery capacity readout in per cent, an automatic function test for the modulation mat, and cable test equipment for the safety plug cables.

Operating and storage conditions

• Working: 10°C to 40°C
• Storage and transport: −10°C to 70°C
• Relative humidity: 0% to 85%
• Air pressure: 700 to 1060 hPa

Standards and classification

• CE marked, in compliance with directive 93/42/EEC for medical devices
• Safety: EN 60601-1, class II. Power supply EN 60601-1, class II
• Systems: EN 60601-1-1. Electromagnetic compatibility: EN 60601-1-2
• Built to safety value class B, EN 55011, group 1
• Applied part type BF, IEC 60417-5333. Safety class II device, IEC 60417-5172
• RoHS II device class 8
• No protection against water ingress. Protection against solid objects to the ratings marked on the rear of the device

Only original BICOM® accessories may be connected, which is what keeps the device within its class B group 1 limits.

Safety note

Magnetic depth probes and magnetic articulated probes generate magnetic fields that can affect implants such as pacemakers, per IEC 348. The device carries this warning on the rear. Modification of the device is not permitted, and it must not be covered while operating. Read the operation manual in full before use.

Connecting to a PC

Connects by USB to BICOMmultisoft® Pilot, which drives the device from a Windows computer. Current system requirements are set out on the BICOM® multisoft pilot listing.

Regulatory status

The BICOM optima mobil therapy device (BM34) is a Class IIa medical device, registered with the MHRA for the Great Britain market. Registration is held through LFH Regulatory Limited of Leeds as UK Responsible Person, and runs to 12 September 2029.

The device is CE marked under directive 93/42/EEC, carried forward under Article 120 of EU MDR 2017/745. Declaration of conformity dated 6 August 2024. Legal manufacturer: AC Aircontrols GmbH, Kempen, Germany.

Certificates are available on request.
